COMPLETE Line | Industry-Specific Solutions for Control Panels

COMPLETE Line products are compatible with each other and compact. In fact, if we were to define a word for COMPLETE Line, it would be “approach”. This approach, which offers special solutions by analyzing the needs of different sectors, is very comprehensive and effective. The purpose of the COMPLETE Line approach is; Optimization of the installation of control panels from start to finish, that is, from planning to assembly, with uniform connection technology and compact products, is to facilitate the process.

Here you can access Phoenix Contact’s services for control cabinet manufacturing: Control Panel Manufacturing

► Ease of Use: COMPLETE Line products provide ease of use throughout the entire installation process with their uniformity in function and design. The most important feature of these products is that they have a compact structure. In this way, the products are very easy to use, and assembly and disassembly operations are carried out faster. Functional components are highlighted separately by color. Standardizing accessories makes assembly simpler and faster.► Quick and Tool-Free Assembly: All COMPLETE Line products are compatible with Push-in technology. Thanks to this harmony, products can be assembled with less workload and process safety. Push-in technology is a technology that allows us to easily connect cables to the places we need to connect them without using tools. In this way, we can connect the cables to the places they need to be connected by pushing them a little, as the name suggests. Therefore, you save a lot of time during assembly.

► Less Workload in Production and Logistics: There are standard accessories designed for bridging, marking and testing COMPLETE Line products. Although these accessories provide ease of use, especially during the installation and assembly process, this is not the only advantageous aspect. Thanks to the use of uniform components, it reduces the workload in the supply and logistics areas and saves significant time.

► Complete Control Panel from a Single Source: COMPLETE Line provides an integrated product portfolio that helps you completely plan and organize all functions of the control cabinet and assembly on site. The various components are optimally matched to each other and can be equipped with standard accessories. This feature; It enables you to permanently reduce engineering, procurement and installation costs.

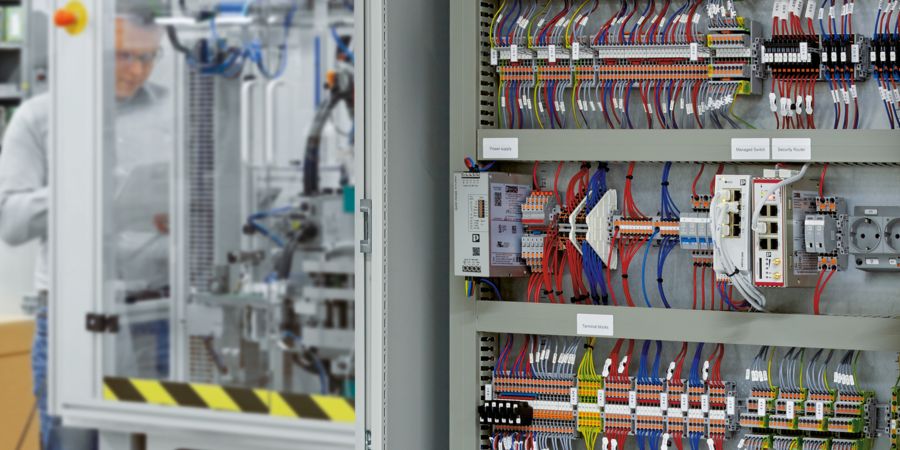

COMPLETE Line products work in harmony with each other and provide the necessary optimization for the control panel. Let’s talk about some Phoenix Contact products that fall within the scope of the COPMLETE Line.

► Terminal blocks: Terminal blocks that allow cable connection without using tools provide great ease of use. You can examine PT series Push-in terminal blocks.

► Signal Conditioners and Relay Systems: While signal conditioners transmit the analog signals received from field devices to the PLC, they isolate, filter, prevent and convert these signals. In this way, the PLC will not be damaged. Relay systems also assist signal conditioners with their switching. We can briefly say that signal conditioners and relay systems, which are important for control panels, ensure the safe transfer of process signals. You can examine MACX Analog signal conditioners and PLC-INTERFACE relay systems within the scope of COMPLETE Line products.

► Power Supplies: Power supplies that provide the energy needed by the devices in the field also have an important place in control panels. COMPLETE Line power supplies have high reliability, surge protection and remote monitoring features. You can examine the QUINT POWER series power supplies, which are durable and provide superior system continuity thanks to the special configuration of signal thresholds and characteristic curves and SFB Technology.

► Safety Relays: These relays are safety components that provide machine safety at SIL or PL levels. You can examine PSR series safety relays.

► Industrial Network and I/O Systems: These systems enable devices to transfer data and communicate with each other. In short, we can say that it enables communication. These systems, which we can especially call the heart of digitalization, provide fast and secure data exchange with the COMPLETE Line approach. You can examine the Axioline FI/O system and FL SWITCH Ethernet switches.

► Field Distribution Units: Field distribution systems within the scope of COMPLETE Line provide easy, orderly and safe connection of all field devices except the control panel. Thanks to IP67 protected modules and ready-made connector structures, cabling time is significantly shortened and system installation is simplified. You can review the Fieldline Modular I/O product.

COMPLETE Line approach has made a name for itself with the functional solutions it offers to different sectors without being tied to a single sector. It meets the special needs of the sector by being used in residences, functional buildings, process industry, machinery manufacturing, energy sector and many other sectors.

There are many systems that need to be taken into consideration in control panels used in machine manufacturing. We can talk about many systems such as control, supply and protection, communication, signal conditioning, functional safety, connectivity and signal transmission. COMPLETE Line provides a broad product portfolio to develop integrated and coordinated systems in machine manufacturing.

We can talk about fewer systems in control panels used in the energy sector. Energy automation, auxiliary power supplies, industrial network and security systems operate more efficiently and reliably thanks to the COMPLETE Line product portfolio.

Slightly more complex control panels may be required for building automation; here we can talk about many systems that require a control mechanism. COMPLETE Line also provides safe and fast communication by offering more comprehensive products for automation. Additionally, we can include systems within the building and smart homes.

In the process industry, system continuity is very important. For the continuity of this system, control, supply and protection, signal conditioning, secure communication and connection systems must operate smoothly. COMPLETE Line offers integrated solutions for all functional areas of the process industry.
